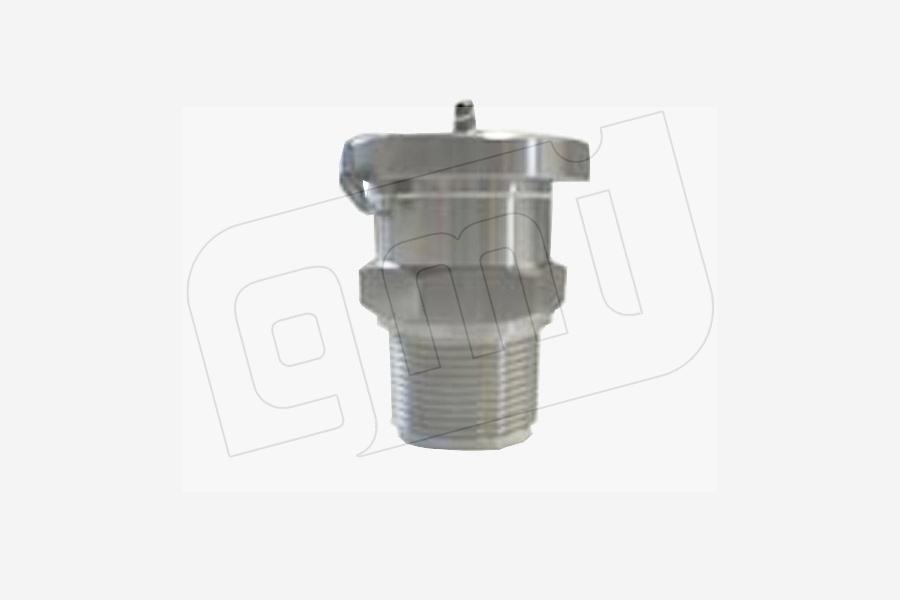

SPIRALIS® Vacuum and Pressure Relief Valves
Design : Pipe inlet or free inlet.Pipe outlet or free outlet
Construction : Springloaded
Materials : Bronze, Brass, Stainless steel: 304-316, Special alloys...
Seats : Metal to metal, Soft seat, PTFE...
Range for set pressure : Pressure: 0,2 to 4bars
Vacuum: -0,01 to -0,05bar
Sizes : Up DN8 to DN50
End connections : Threaded BSP,NPT
Flanges
CLAMP
| Title | Reference | Material | Standards | PN | DN | |
| Spiralis Pression/Dépression Inox | 251001 | INOX | Mâle Gaz | -50/+200 mbars | DN32 | G240.pdf |
