Ball valves by GMI.

Ball valves

The GMI ball valve is for fluid shut-off applications, whether the fluid is a gas or liquid. Our industrial expertise and our experience of industrial valve technologies enable us to provide HIGH PERFORMANCE characteristics specifically suited to your specifications.

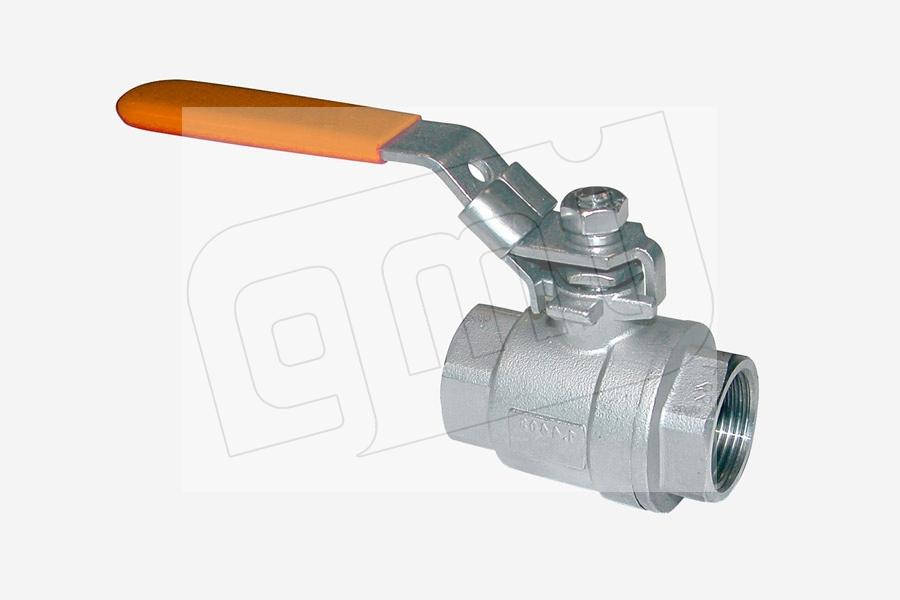

MONO-DINEX® Monobloc ball valves

Monobloc ball valves Construction : 2 piece monobloc ball valve
Materials : Carbon steel: A216 WCB, Stainless steel: 316, Brass, Bronze, Aluminium-bronze
Class : PN16, PN25, PN50, PN64, PN140
Sizes : up DN8 to DN80
End Connections : Screwed: BSP, NPT
Full bore or reduced bore ball valves.

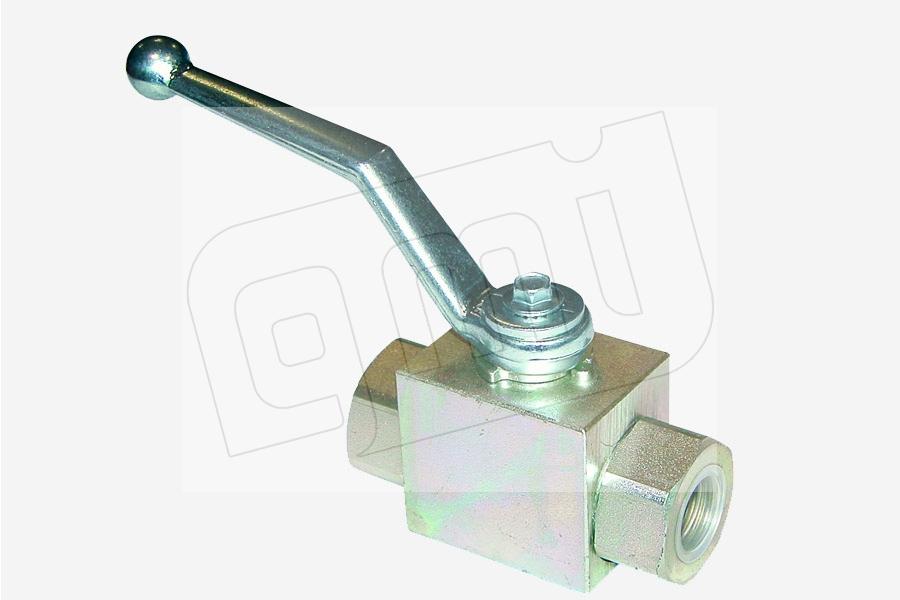

HYDRO-DINEX® Monobloc ball valves

high pressure hydraulic ball valves Construction : Monobloc ball valve BKH, MKH
Materials : Carbon steel, Stainlss steel: 316
Class : Up PN350 to PN500
Sizes : Up DN8 to DN50
End Connections : Screwed to BSP,NPT - Welded: SW,BW
Full bore or reduced bore ball valve.
Seats POM or PTFE

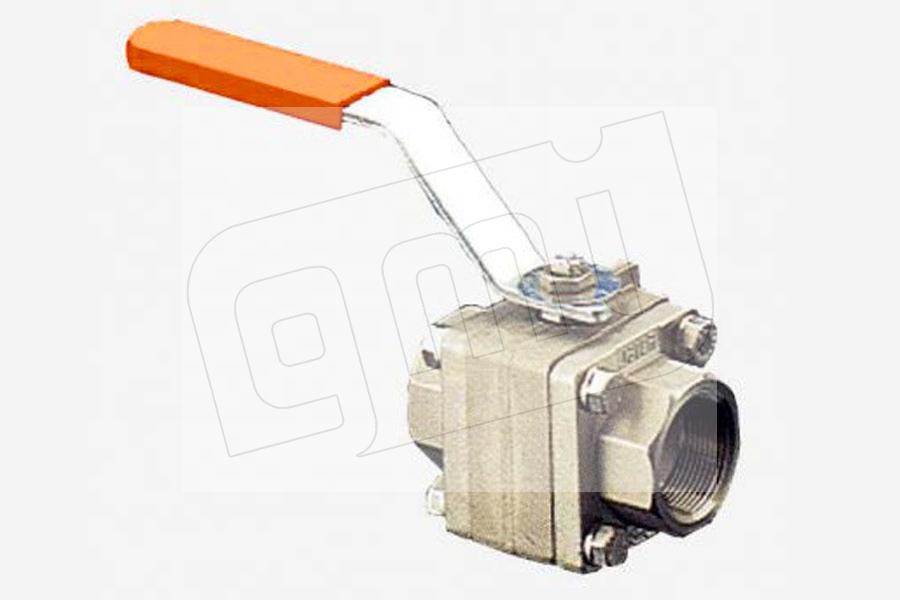

DINEX® Forged body 3 piece ball valves

forged body 3 piece ball valves Construction : Forged body 3 piece ball valves
Materials : Carbon steel: A105 - LF2..., Stainless steel: 304L-316-316L, Special alloys...
Class : PN64, PN100, PN150, PN250, PN420
Class 300, class 600, class 900, class 1500, class 2500
Sizes : Up DN8 to DN100
End Connections : Screwed BSP, NPT - Welded SW, BW - Flanges
Full or reduced bore ball valve.
Fire safe BS 6755/2
ATEX

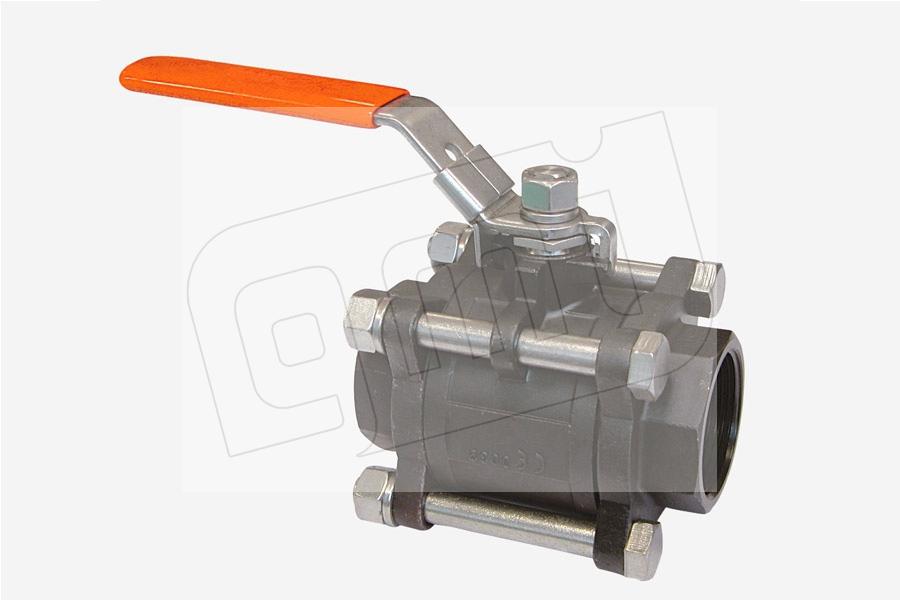

ECO-DINEX® Three piece ball valves

three piece ball valves Construction : Three piece ball valve
Materials : Carbon steel: A216 WCB, Stainless steel: 316(CF8M), Bronze
Class : PN64
Sizes : Up DN8 to DN100
End Connections : Screwed BSP, NPT - Welded SW, BW - Between flanges
Full or reduced bore 3 piece ball valve

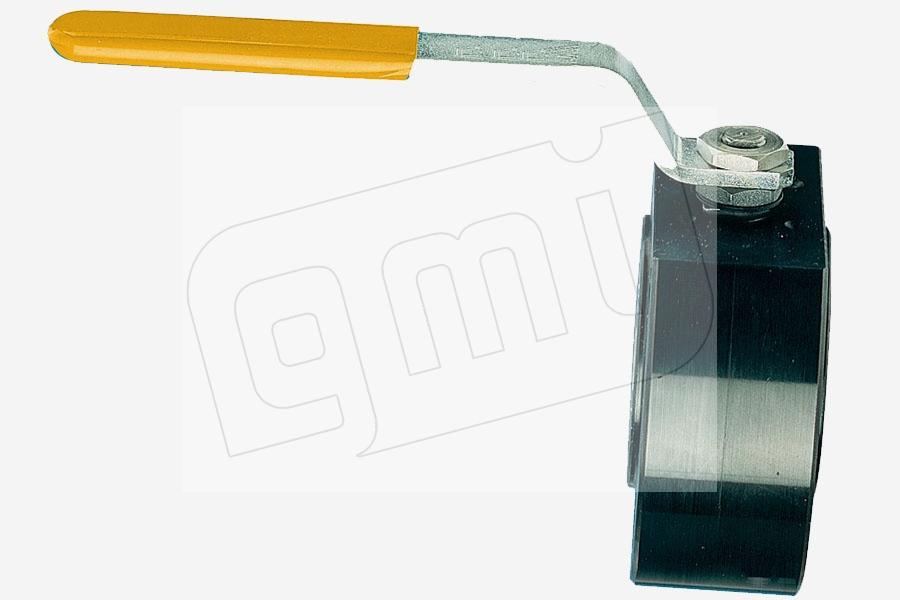

PRO-DINEX® Compact flange ball valves

Compact flange ball valves Construction : Compact flange ball valves
Materials : Carbon steel: A105- A216 WCB, Stainless steel: 304L-316L-A351 CF8M, Special alloys...
Metallurgie : Forged or casting
DIN Class : PN10, PN16, PN25, PN40
ANSI Class : 150lbs, 300lbs, 600lbs
Sizes : Up DN15 to DN250
End connections : Between flanges
Full or reduced bore ball valve
Fire safe BS 6755/2
ATEX

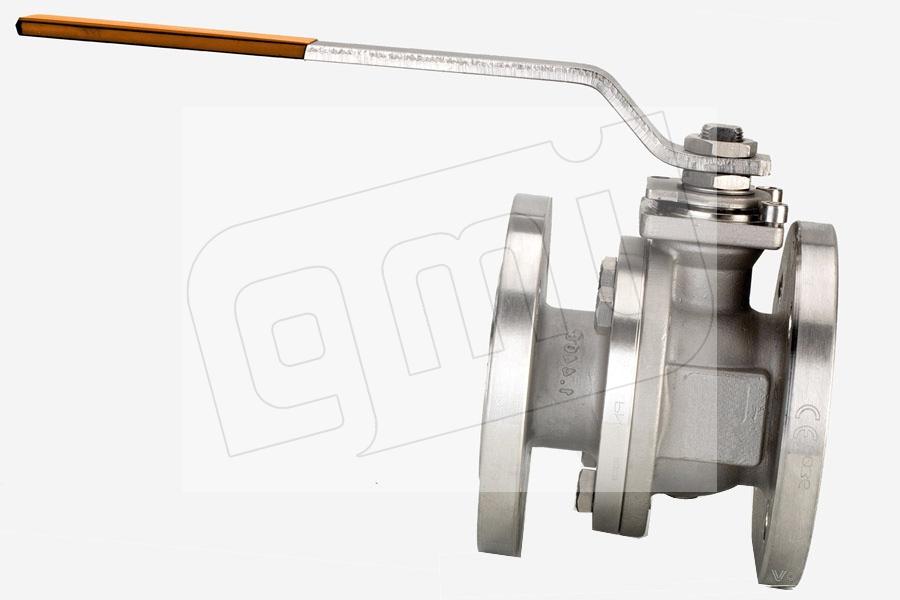

PRO-DINEX® Split body floating ball valves

split body floating ball valves Construction   : 2 piece split body ball valves
Materials : Carbon steel: A105- A216 WCB, Stainless steel: 304L-316L-A351 CF8M, Special alloys...
Metallurgie : Forged or casting
DIN Class : PN10, PN16, PN25, PN40
ANSI Class : 150lbs, 300lbs, 600lbs, 900lbs, 1500lbs, 2500lbs
Sizes : Up DN15 to DN300
End connections : Flanges
Full or reduced ball valve
Fire safe BS 6755/2
ATEX

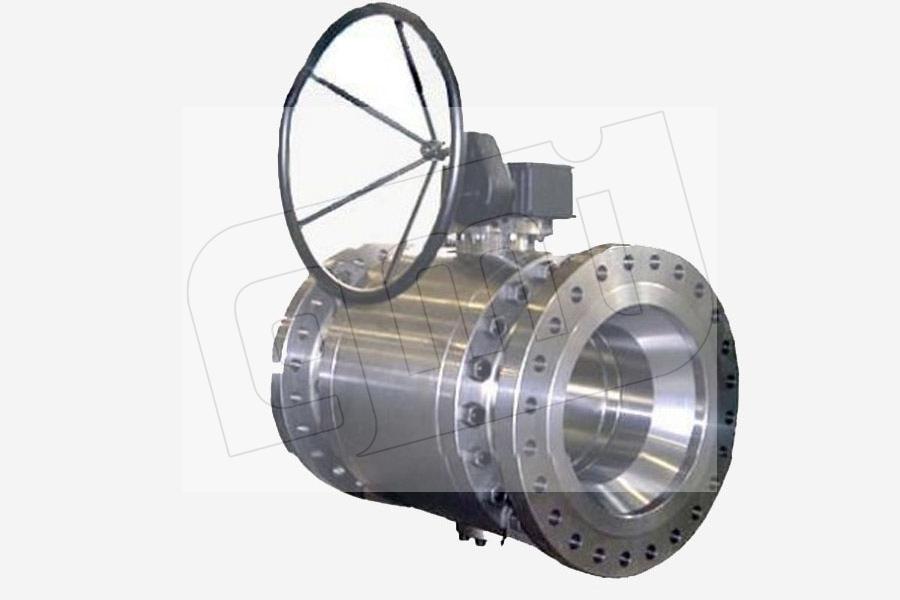

TECHNI-DINEX® Trunnion ball valves

trunnion ball valves Construction : Trunnion ball valve
Materials : Carbon steel: A105-A216 WCB-LF2, Stainless steel: 316L-A351 CF8M, Special alloys...
Class : PN20, PN50, PN100, PN150, PN250, PN420
Class 150, class 300, class 600, class 900, class 1500, class 2500
Sizes : Up DN15 to DN900
End Connections : Screwed to BSP,NPT - Welded SW,BW - Flanges
Thickness : Soft seats or metal seats
Full bore or reduced bore
Fire safe BS 6755/2
ATEX

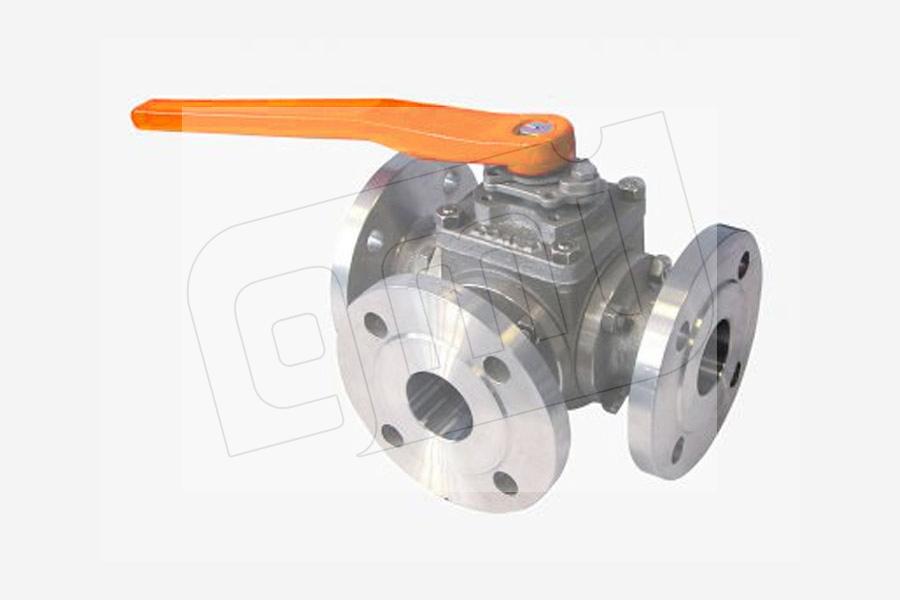

Multiways ball valves: 3 and 4 ways

multiways ball valves Construction : MONO-DINEX®, DINEX®, PRO-DINEX®, Between flanges
Materials : Carbon steel: A105-LF2, Stainless steel: 304L-316-316L, Brass
Class : PN10,PN16,PN20, PN40, PN50, PN100
Class 150, class 300, class 600
Sizes : Up DN8 to DN350
End Connections : Screwed to BSP,NPT - Welded SW,BW- Flanges
Perçage de la sphère en L-T-X
Full or reduced ball valve
Fire safe BS 6755/2
ATEX
Our offer is drawn up to satisfy the specific operating conditions of your application. Our global offer is based on: -The construction of valves, which can be trunnion ball valves or floating ball valves, in a monobloc, two-piece or three-piece design, -Valve design, whether full bore or reduced bore. -Operating pressure, -Operating temperature, -High-pressure or very low-pressure operation, -Compatibility of the materials with the fluid.
