Diaphragm valves-Straight through type
The GMI diaphragm valve straight through type is a valve that controls the fluid flow through the deformation of a flexible component: the membrane.
When the valve is open, the stream is not deflected.

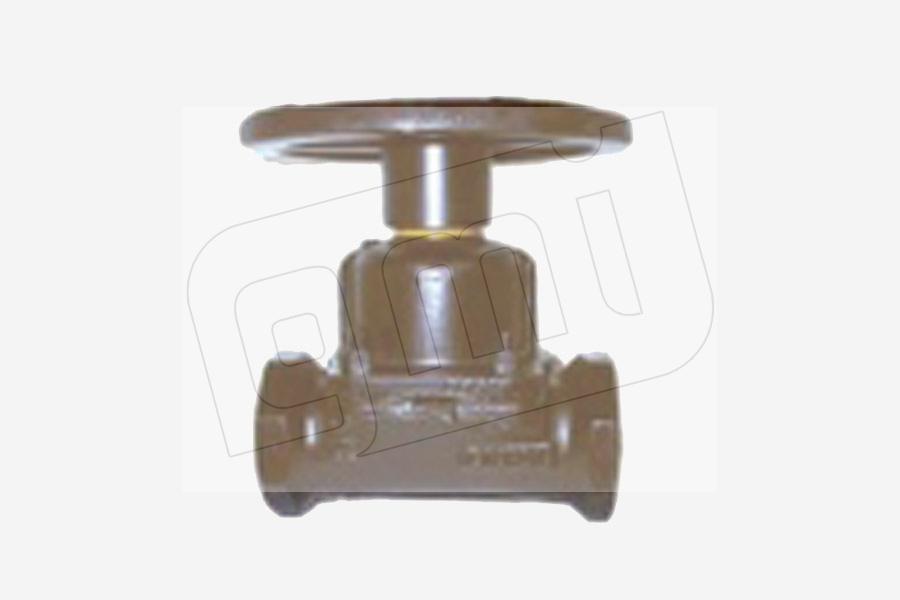

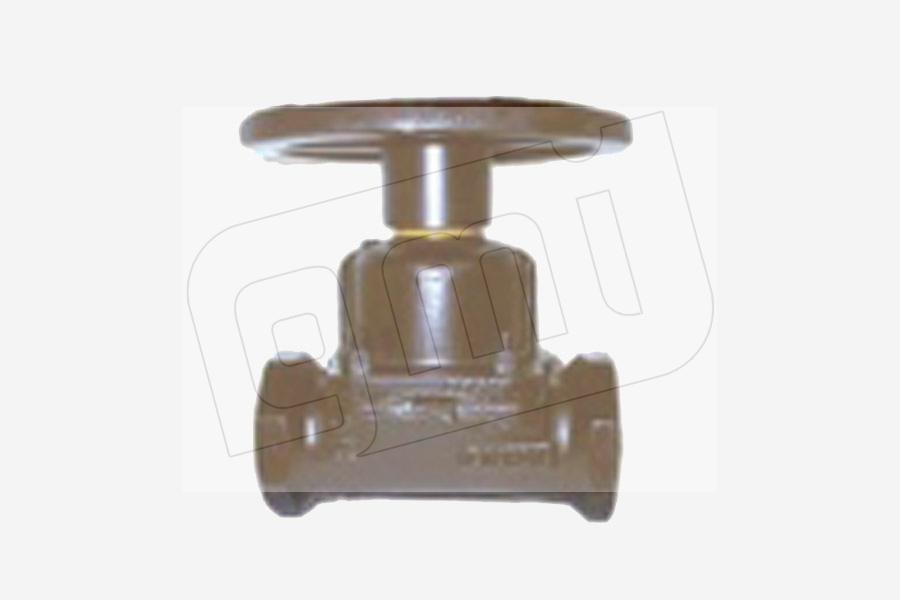

BRANOA® Threaded diaphragm valves.
Construction : Straight through type diaphragm valvesBody material : Cast iron, Stainless steel,...
Diaphragm material : Natural rubber, EPDM, NBR, FKM, Silicone...
Class : PN10
Sizes : Up DN10 to DN80
End connections : Threaded: BSP, NPT
Lining material : Ebonite, Butyl, Halar, Rilsan, PVDF, ETFE, PFA, PTFE...

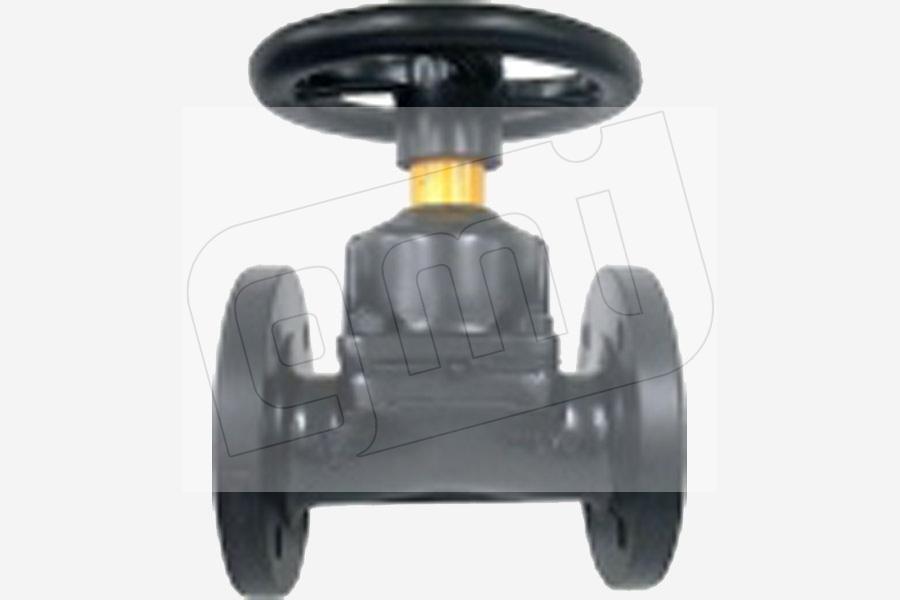

DINO-BRANOA® Flanged diaphragm valves, straight...
Construction : Straight through type diaphragm valvesBody material : Cast iron, Stainless steel,...
Diaphragm material : Natural rubber, EPDM, NBR, FKM, Silicone...
Class : PN10, PN16, PN20, Asa 150
Sizes : Up DN10 to DN250
End connections : Flanges: PN10, PN16, PN20, Asa 150
Lining material : Ebonite, Butyl, Halar, Rilsan, PVDF, ETFE, PFA, PTFE...
-The construction of the membrane valves: straight or curved bore.
-The design of the valves: coated or not coated. -Operating pressure,
-Operating temperature,
-Compatibility of the body and coating materials with the fluid being conveyed.
