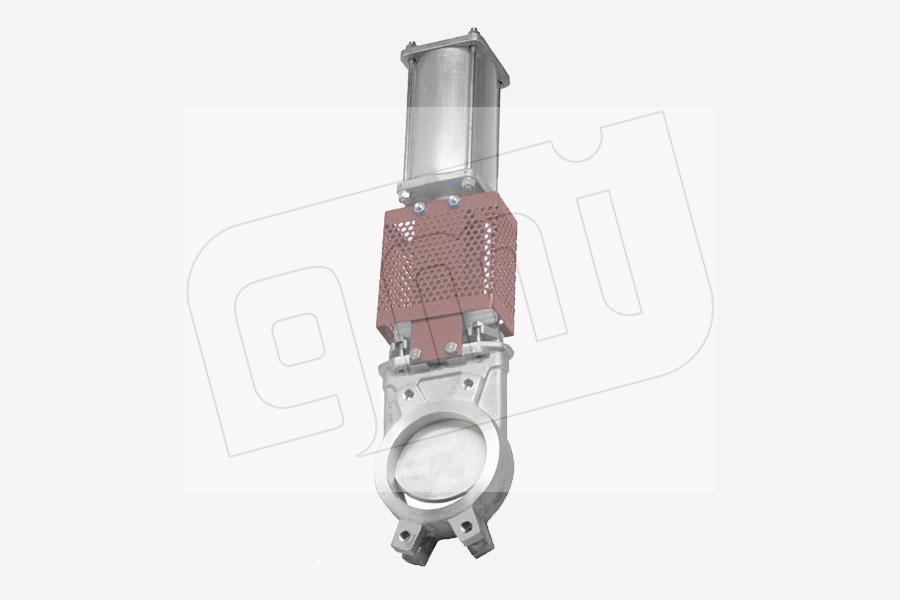

AFIBRAŽ Knife gate valve by GMI.

Knife gate valves

The GMI knife gate valve acts as a shut-off device for a fluid, whether liquid or paste, using a gate that cuts off the fluid flow. The knife gate valve is intended to create a total or relative seal.

AFIBRAŽ Knife gate valves

wafer knife gate valves Construction : Wafer and uni-directional knife gate valve
Body material : Cast iron GG 25, Stainless steel: 304-316
Gate material : Stainless steel: 304-316
Seat material : Metal-metal, EPDM, Nitril, Viton, Silicone, PTFE...
Class : PN10, PN16, PN20, Asa 150
Sizes : Up DN50 to DN1200
End connections : Between flanges: PN10, PN16, PN20, Asa150
On request bi-directional using

AFIBRAŽ Through conduit knife gate valves

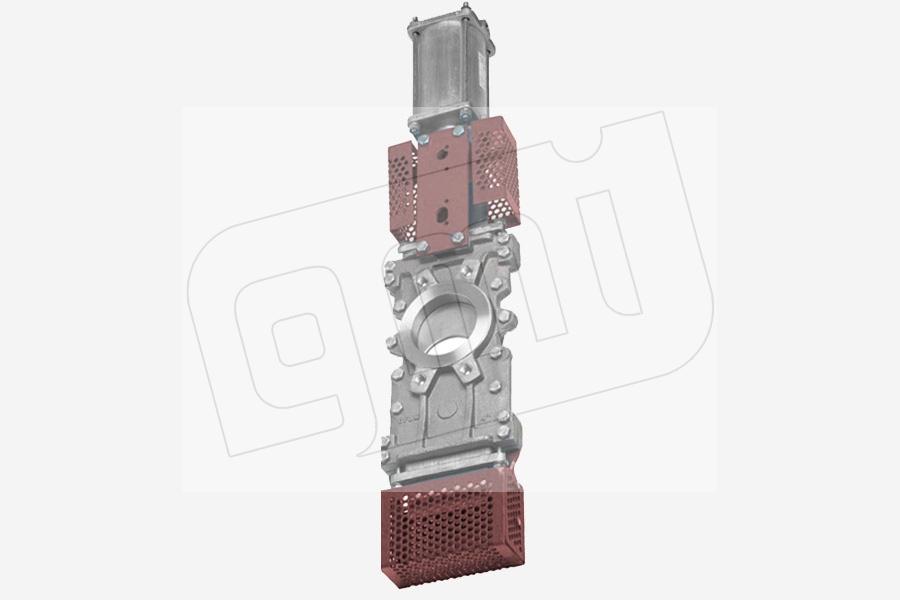

through conduit knife gate valves Construction : Through conduit knife gate valve
Body material : Cast iron: GG 25, Stainless steel: 304-316
Gate material : Stainless steel: 304-316
Seat material : Metal-metal, EPDM, Nitril, Viton, Silicone, PTFE...
Class : PN10, PN16, PN20, Asa 150
Sizes : DN50 ŕ DN600
End connections : Between flanges: PN10, PN16, PN20, Asa150
A manual, pneumatic or electric knife gate valve is used on installations where the fluid flows unidirectionally or bi-directionally. Our offer is drawn up to satisfy the specific operating conditions of your application. Our global offer is based on: -The construction of the knife gate valves: castings or welded assemblies. -The design of the valves: continuous or non-continuous. -Operating pressure, -Operating temperature, -Compatibility of the body and seal materials with the fluid being conveyed.
