Bursting discs

The GMI bursting disc is a pressure relief safety device. It is designed to operate by bursting the disc, either by explosion or implosion. It is a single-use device because its operation is self-destructive. It is custom-made for your application.

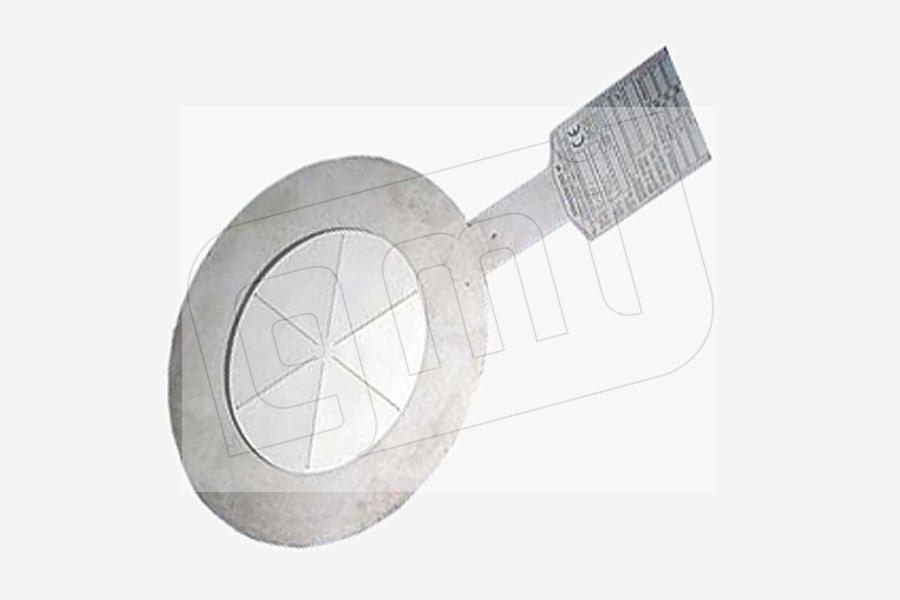

Flat Composite rupture discs

flat composite rupture discs Construction : Between 2 laser-cut metal foils lies a PTFE sealing diaphragm.
Non-fragmenting design
Burst Pressure Range : Up 0,015 to 800bars
Temperature range : Up -80 to 400°C
Sizes : Up DN8 to DN900
Materials : Stainless steel, Nickel, Hastelloy...
Fully PTFE coated
Performance Tolerance : Up +/-10% to +/-5%
On request
-to be set directly between flanges without holder
-Internal vacuum support
-Fully PTFE coated on process side
-Bi-directionnal disc
-Signal transmitter

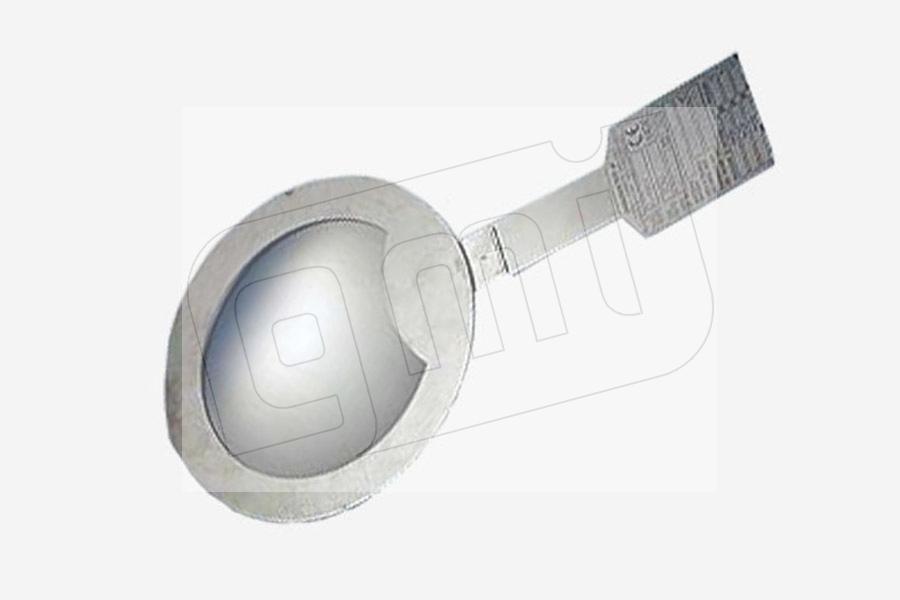

Reverse rupture discs

reverse rupture discs Construction : Non-fragmenting design
Burst Pressure Range : Up 1 to 600bars
Temperature range : Up -80 to 400°C
Sizes : Up DN15 to DN300
Materials : Stainless steel, Nickel, Hastelloy, Monel, Inconel...
Performance Tolerance : Up +/-10% to +/-5%
On request:
-Between 2 laser-cut metal foils lies a PTFE sealing diaphragm
-Non fragmenting disc
-Vacuum resistant
-Metal sealing foil
-Fully PTFE coated on process side
-Signal transmitter

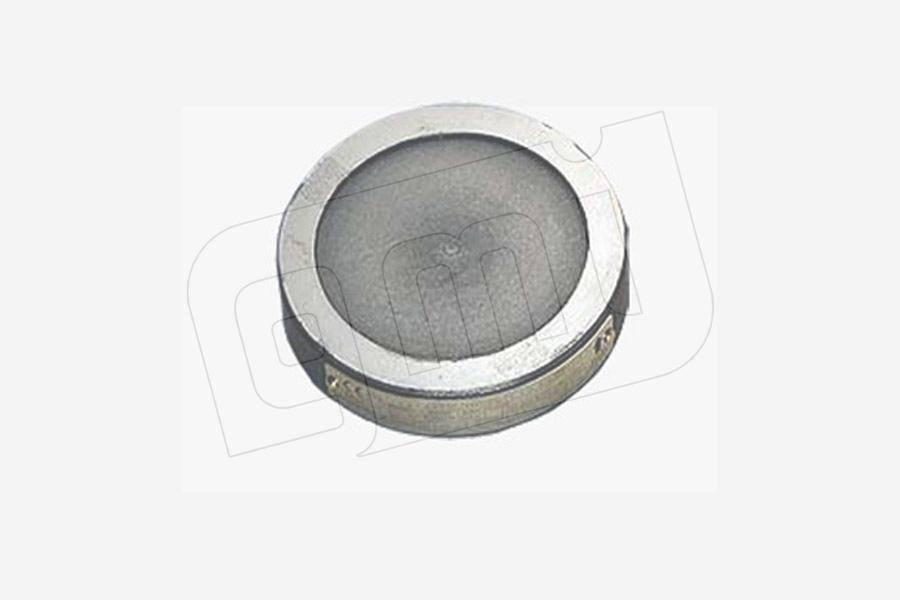

Graphite rupture discs "Graphit SpiralisŪ"

graphite rupture discs Construction : Fragmenting
Burst Pressure Range : Up 0,07 to 80bars
Temperature range : Up -60 to 300°C
Sizes : DN25 ā DN600
Materials : Graphite
Performance Tolerance : +/- 10%
-Internal vacuum support
-Fully PTFE coated on process side
-Bi-directionnal disc
-Signal transmitter
The following criteria determine how our bursting discs are made: -maximum operating pressure -bursting pressure -fluid conveyed -operating temperature -flow to be drained -any pulsating flow -presence or absence of vacuum in the installation -whether or not the disc is non-fragmenting -disc material -connection method.
