Pressure regulators
Pressure regulators are used to reduce the pressure of a fluid, whether gas or liquid. The upstream pressure is reduced by adjusting the pressure regulator until the desired downstream pressure is reached.

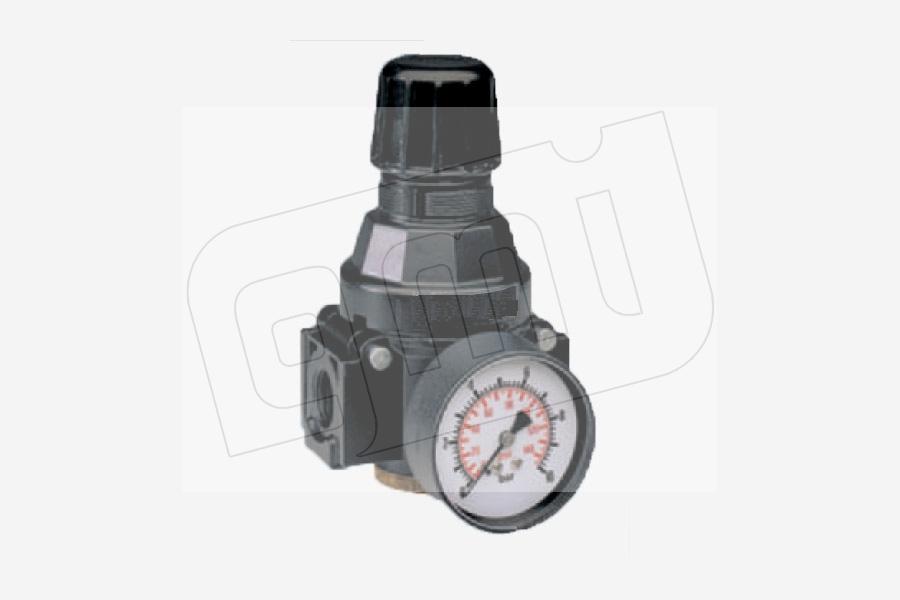

Pneumatic regulators
Class : PN16Body material : Aluminium
Sizeq : 1/4" (DN8) - 3/8" (DN10) - 1/2" (DN15) - 3/4" (DN20) - 1" (DN25) - 1"1/2 (DN32)
End connections : Threaded: BSP, NPT
- Filters
- Lubrificators
- Automatic drain connectable

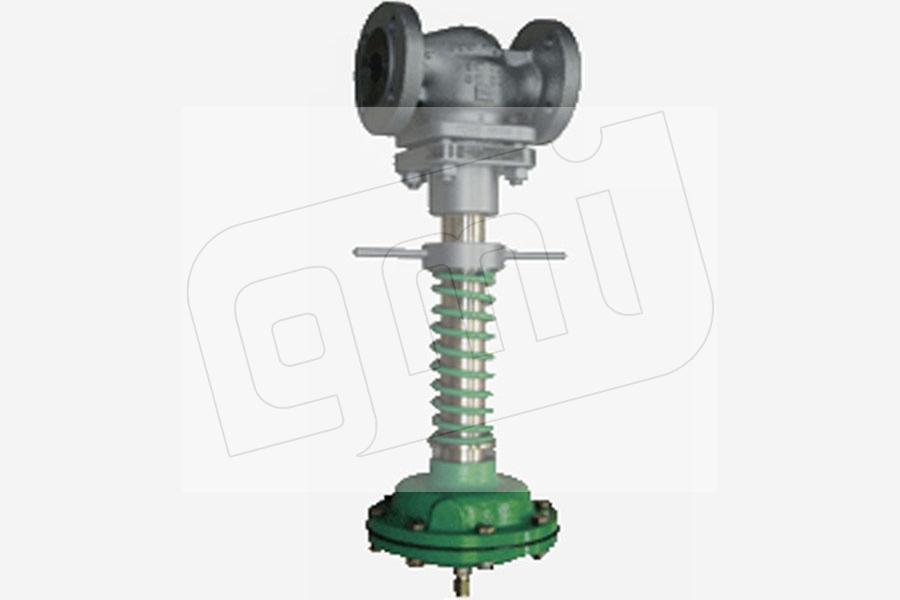

Self Operated pressure regulators
Body materials : Cast iron, Carbon steel, Stainless steel...Trims : Metal to metal, Soft sats: EPDM, PTFE...
Size : Up DN15 to DN150
End connections : Threaded: BSP, NPT
Flanges: PN10, PN20, PN25, PN40
Inlet pressure : 40bars
Outlet pressure : 0 to 25bars

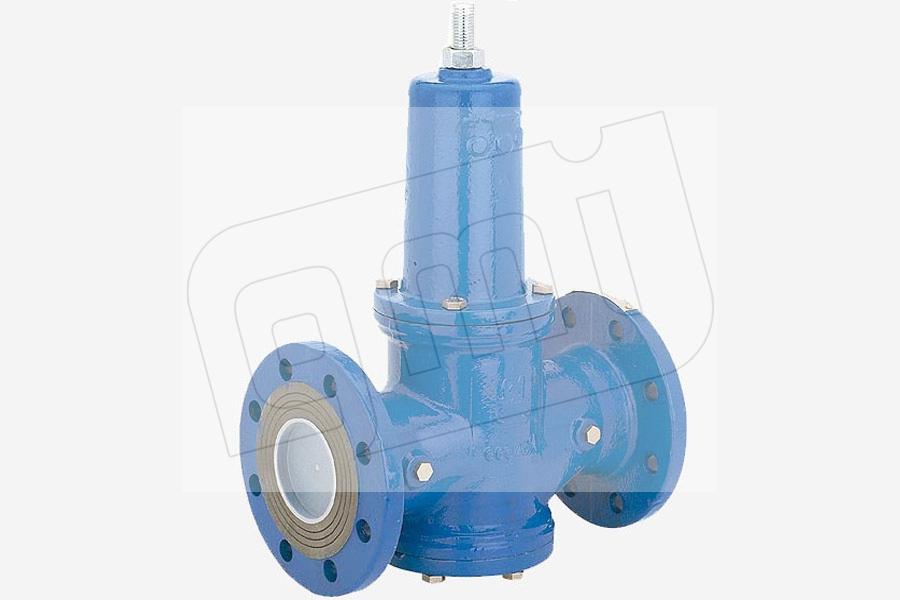

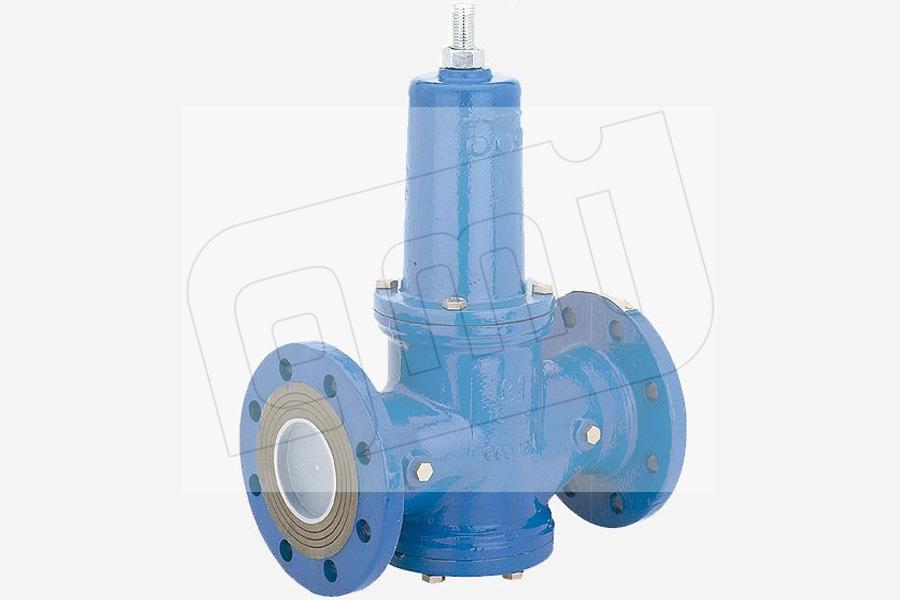

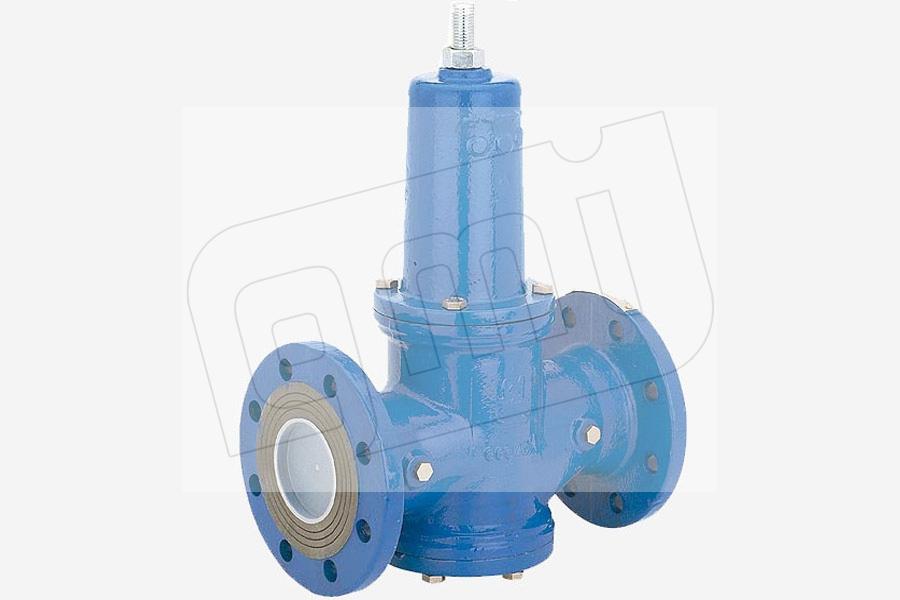

Water Pressure Reducing Valves
Body materials : Brass, Bronze, Cast ironInternal materials : Metal to metal or soft seats: EPDM, NBR...
Size : Up DN15 to DN200
End connestions : Theaded: BSP
Flanges: PN10, PN16, PN25,PN40, Asa 150
Inlet maximum pressure : 40bars

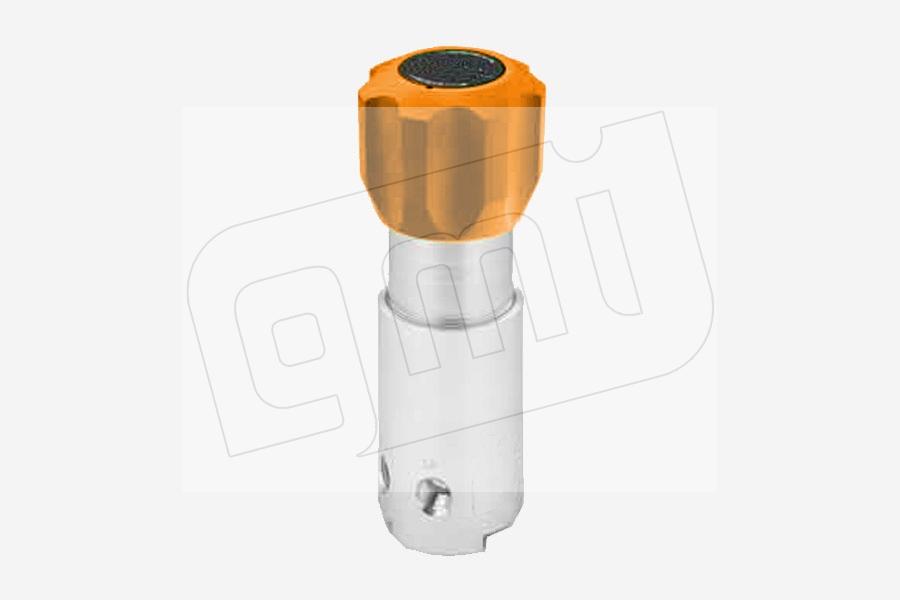

Springloaded Pressure Regulators
Body materials : Brass, Stainless steelInternal materials : PTFE, Nitrile, Epdm...
Size : Up 1/4" to 2" (DN50)
End connestions : Threaded: BSP, NPT
Flanges
Inlet maximum pressure : 70-200-400-700bars
Domeloaded Pressure Regulators
Body materials : Brass, Stainless steelInternal materials : PTFE, Nitrile, Epdm...
Size : Up 1/2" (DN15) to 4" (DN100)
End connestions : Threaded: BSP, NPT
Flanges
Inlet maximum pressure : 70-200-250-400bars
-The construction of the pressure regulators, dischargers, or pressure reducers, whether for use with gases or liquids.
-The design of the pressure regulators, dischargers, or pressure reducers, whether it includes a membrane, a piston or a dome.
-The maximum upstream pressure.
-The downstream pressure setting.
-Operating temperature,
-Compatibility of the body and seal materials with the fluid being conveyed.
